Norlin 37
Yacht built in 1974Beautiful, timeless yacht from the drawing board of Swedish design legend Peter Norlin. Originally conceived as a one-ton racer, the Norlin 37 has the typical ample IOR hull, elegant overhangs and a sleek stern with slim transom. Very solid and stiff construction with excellent performance in strong wind. Especially upwind, the Norlin 37 is fast and points very high. The yacht is easy to sail and has a good-natured behavior in high waves. Traditional, well finished Scandinavian interior in high gloss varnished teak. 2 cabin layout with two single berths in aft cabin.
This Norlin 37 has a tall, sleek 3 spreader rig by Nordic-Mast with standing rigging in rod. Well-maintained, fully equipped second hand owner's yacht. Numerous renovations and investments in recent years. The yacht has got a bowthruster, electric anchor windlass, partly new navigation electronics, an electric toilet and new batteries.
Key Facts
- 3 spreader NORDIC-Mast with rod rig.
- Interior in high gloss finished teak.
- Very seaworthy cruiser.
- Classic IOR-design.
- Aft cabin with two single berths.
- Numerous recent investments.
- Comprehensive specification.
- Bowthruster (new 2017).
Main Info
| Model | Norlin 37 |
|---|---|
| Manufacturer | Vikens Varv (SWE) |
| Designer | Peter Norlin |
| Category | Yacht |
| Year | 1974 |
| Location | Ostsee |
| Flag | Germany |
|---|---|
| VAT status | EU-VAT paid |
| Material | GRP |
| Rig | Sloop |
| Cabins | 2 |
| Berths | 6 |
Dimensions & Technical details
| Length | 11.05 m |
|---|---|
| Length waterline | 9.00 m |
| Beam | 3.60 m |
| Draft | 1.96 m |
| Displacement | 7.8 t |
| Sail area | 68 m² |
| Engine | YANMAR 3HM35 |
|---|---|
| Power | 35 PS/26 KW |
| Drive | Shaft with MAXPROP |
| Fresh water | 140 L |
| Fuel | 70 L |
Norlin 37 | Yacht built in 1974
Specification
Rigg/Sails
- Keel-stepped, top-rigged, white painted aluminum mast by NORDIC-Mast
- Three sets of spreaders
- Standing rigging in rod
- Babystay
- Running backstays/checkstays
- Manual backstay adjuster
- Genoa furling system HARKEN
- Spinnaker pole
- Jockeypole
- Full-battened mainsail Faber & Münker Dacron approx. 36 m²
- Genoa I Brüder-Segel approx. 59 m²
- Genoa II Brüder-Segel approx. 54 m²
- Genoa III Faber & Münker approx. 42 m² mit Latten
- Genoa III Brüder-Segel approx. 42 m²
- Genoa IV Brüder-Segel approx. 27 m²
- Trysail
- Spinnaker Bruce Banks approx. 130 m²
- Spinnaker deck gear
- Additional carbonfibre spinaker pole
Deck
- Electric anchor windlass QUICK 24 V/1.000 W (new 2017) with radio remote control
- Mooring gear: CQR-anchor 15 kg with 28 m anchor chain 8 mm
- Sprayhood with extension
- Full cockpit tent
- Teak deck in cockpit
- Swim ladder
- Removable cockpit table
- Outboard engine bracket on pushpit
Layout/Interior
- Saloon with two longitudinal sofas on folding saloon table
- Chart table with navigator seat to starboard aft
- L-shaped galley to port aft
- Gas stove (2 burners and oven)
- Electric cool box
- Kitchen sink

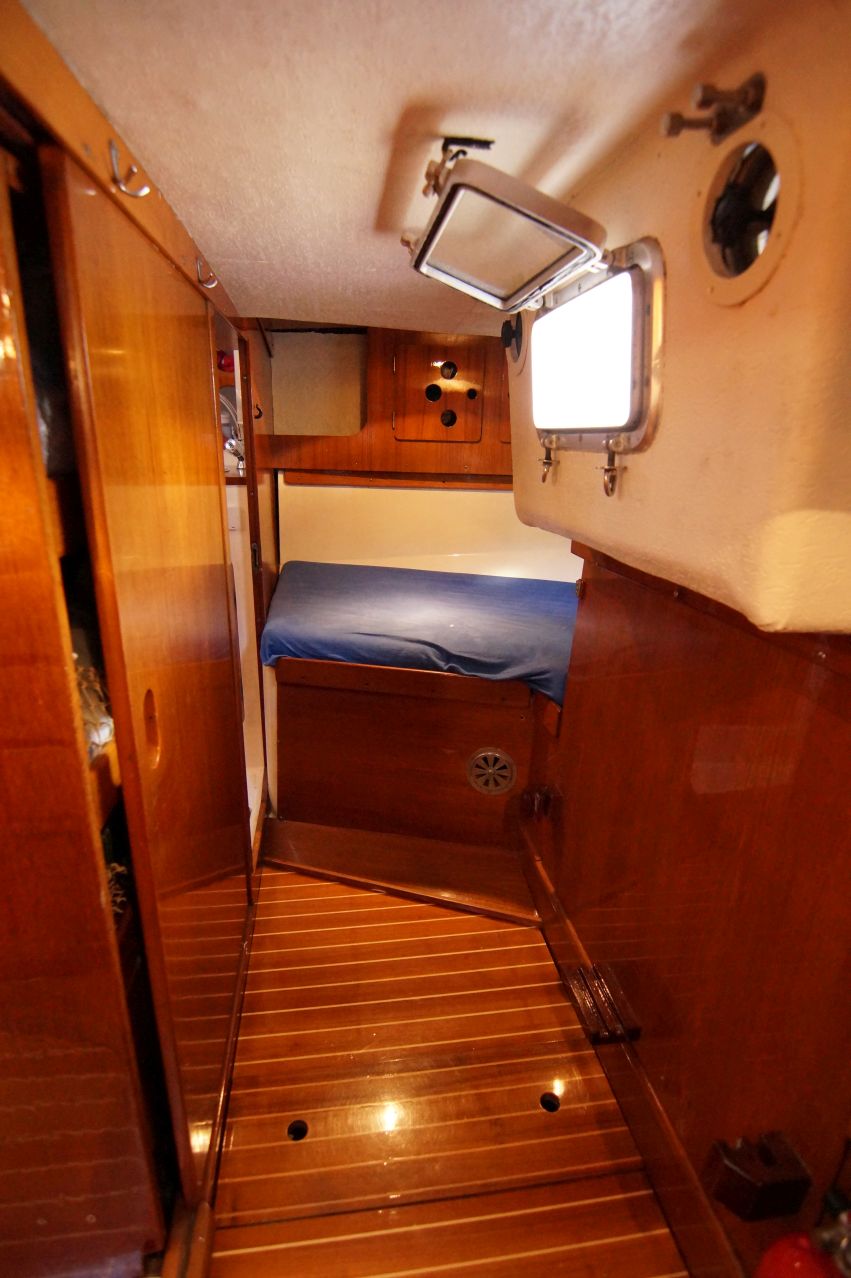

- Ample storage space in cabinets, drawers, shelves and storage compartments - Aft cabin with single berths to starboard and port side and passage below bridge deck
- Heads compartment to starboard with door to aft cabin
- Forward cabin with V-shaped double berth
- Beautifully finished, solid highgloss varnished teak interior
Technical Equipment
- YANMAR 3HM35 3 cylinder inboard diesel 35 hp/26 KW (new 1993)
- Shaft drive with 3 bladed feathering propeller MAXPROP
- Stainless steel diesel tank approx. 70 l
- Solar panel on garage for sliding hatch
- 230 V shore power connection with 230 V sockets below decks
- LEAB 12 V charger for service batteries and starter battery
- 2 x service battery 12 V/142 Ah (new 2018)
- Starter battery 12 V/57 Ah
- PHILIPPI battery controller
- PHILIPPI 24 V battery charger for batteries for bow thruster and windlass
- Separate batteries for bow thruster and windlass 2 x 12 V/55 Ah in series
- External bow thruster SIDEPOWER EX75S 24 V (new 2017) with remote control
- Diesel heater EBERSPÄCHER D5L
- Electric toilet
Safety
- Lifebuoy with rescue light
- Fire extinguisher
- Div. safety equipment and distress signal kit
- Bilge pump
Accessories
- 2 x boom cover
- Spare MAXPROP propeller
- Fenders
- Mooring lines
- Crockery and cutlery
