Grand Soleil 40

Performance-Cruiser built in 2007

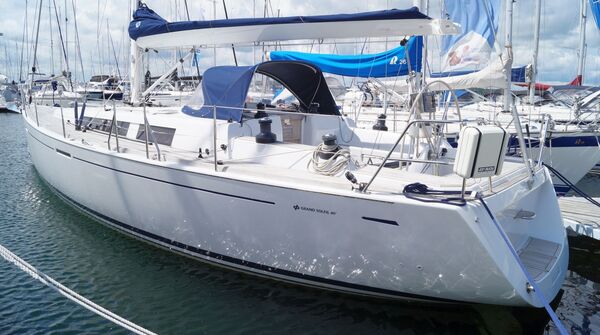

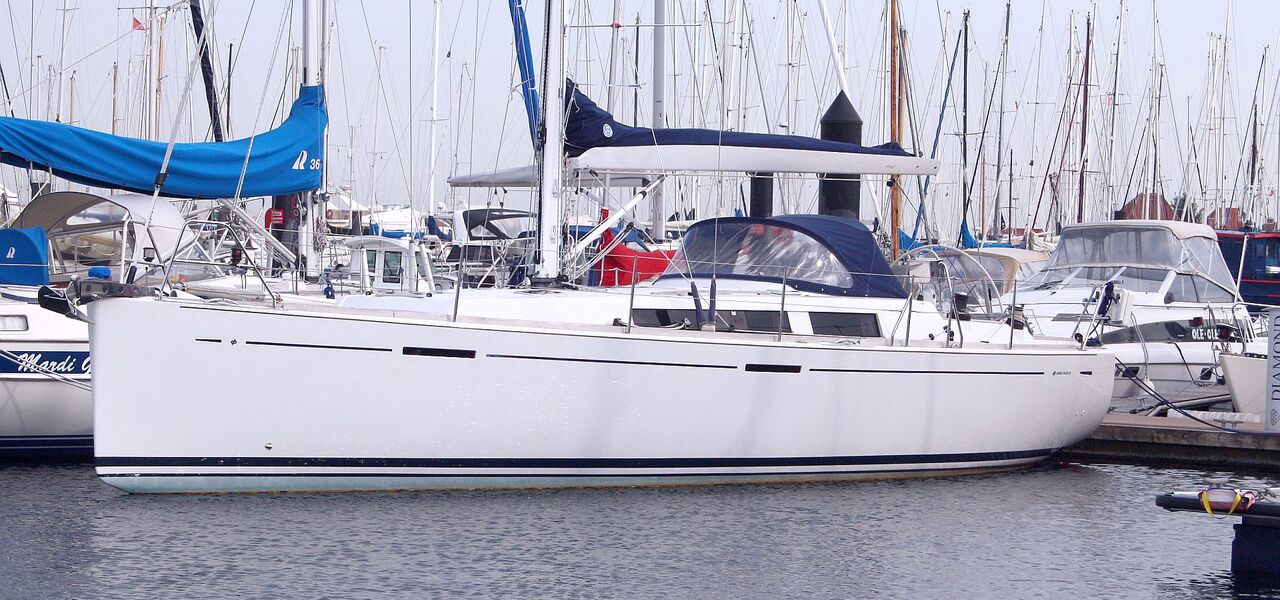

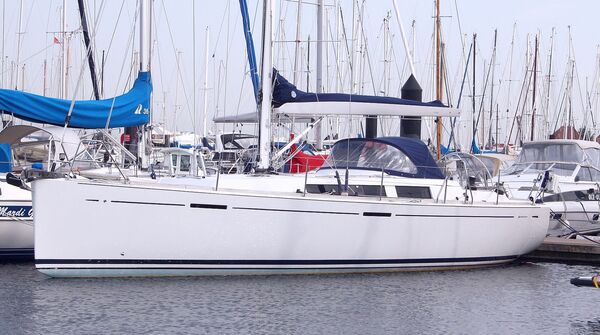

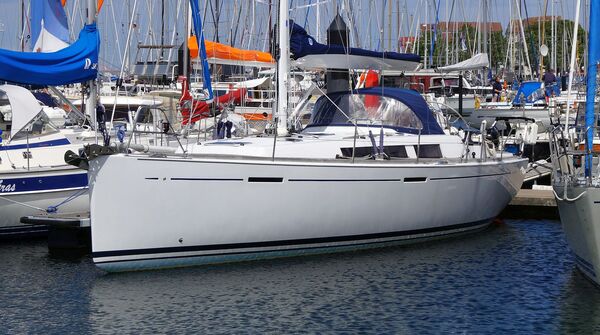

Fast performance-cruiser built by Cantiere del Pardo in Italy. The Grand Soleil 40 by Botin & Carkeek is a modern, elegant and simple design. Uncluttered decks, vertical bow and her sleek, angular coachhouse make the yacht an eye-catcher both under sail and in the marina. A high 3 spreader mast, deep and effective appendixes and the modern hull design provide plenty of performance and fun on the water. The Grand Soleil 40 is not only fast, she is also an easy and safe sailing yacht. Stiff and torsion-free construction with strongback in galvanized steel to accommodate the loads of keel, mast and shrouds. Owner's yacht in very good condition. Very comprehensive specification (incl. HARKEN racing deck gear, carbon boom, teak decks, NORTH-Sails 3DL Marathon sail wardrobe etc.). 3 cabin-layout with two heads compartments and mahogany interior. Indoor winter storage every year and continuous technical maintenance.


Key Facts

  • Contemporary Botin & Carkeek design
  • NORTH-Sails 3DL Marathon wardrobe
  • Grand Soleil 40 in 3 cabin layout
  • Harken racing deck gear
  • Carbon V-boom

Main Info

Model Grand Soleil 40
Manufacturer Cantiere del Pardo (ITA)
Designer Botin & Carkeek Yachtdesign
Category Performance-Cruiser
Year 2007
Location Baltic Bay-Marina / Laboe
Flag Germany
VAT status EU-VAT paid
Material GRP
Rig Sloop
Cabins 3
Berths 6

Dimensions & Technical details

Length 12.40 m
Length waterline 11.74 m
Beam 3.86 m
Draft 2.15 m
Displacement 7.3 t
Sail area 94 m²
Engine VOLVO PENTA D2-40
Power 40 PS/29 KW
Drive Saildrive mit Faltpropeller
Fresh water 380 L
Fuel 160 L
Holding tank 45 L

Specification

Rigging/Sails

  • Rigged with a keel stepped, 9/10 fractional, white painted SPARCRAFT performance mast
  • Three sets of aft swept spreaders
  • Carbon V-boom with lazy jacks and mainsail cover
  • Carbon fiber spinnaker pole
  • Hydraulic backstay adjuster HOLMATRO
  • Vectran backstay
  • Genoa-furler with drum below decks
  • Sails: fullbatten mainsail NORTH-Sails 3DL approx. 50 m²
  • Lazy jacks on ANTAL track and sliders
  • Furling genoa NORTH-Sails 3DL approx. 39 m²
  • Gennaker NORTH-Sails 1.5 oz approx. 135 m² with snuffer and gennaker gear

Deck

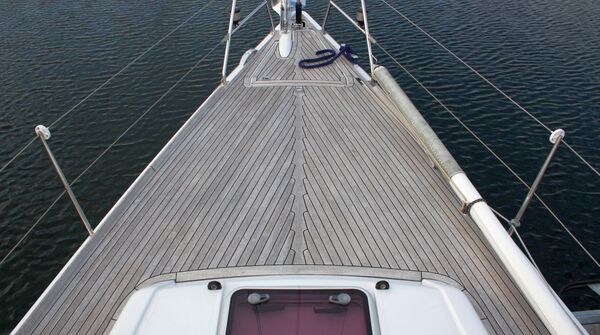

  • Teak on running decks, swim platform and in cockpit
  • HARKEN racing deck gear
  • Upgraded genoa winches HARKEN 53.2STA
  • German mainsheet system with larger mainsheet winches HARKEN 48.2STA
  • Halyard winches HARKEN 44.2STA
  • Sprayhood
  • Electric anchor windlass 1.000 W below decks
  • Mooring gear: stainless steel DELTA-anchor 16 kg and 30 m stainless steel chain 8 mm
  • Large self-draining anchor locker
  • Folding NOMEN cleats and spring cleats
  • Gates in lifelines starboard and port
  • Cockpit shower hot/cold
  • Stainless steel profile as rubbing strake on hull
  • Swim ladder

Layout/Interior

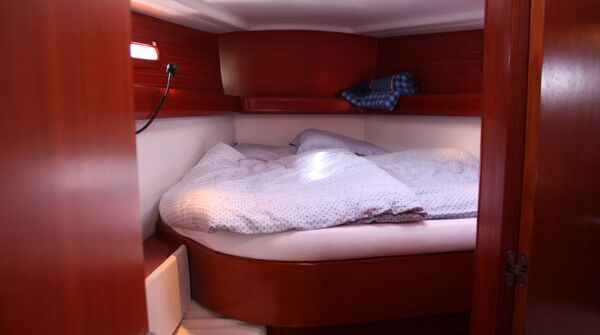

  • 3 cabin layout with a spacious owner's cabin with double berth and owner's heads forward

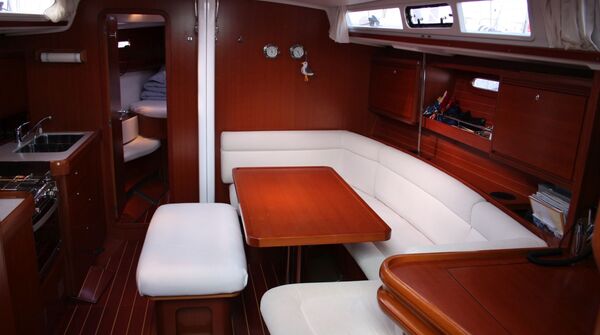

  • Saloon with U-shaped dinette to starboard and central seat at saloon table

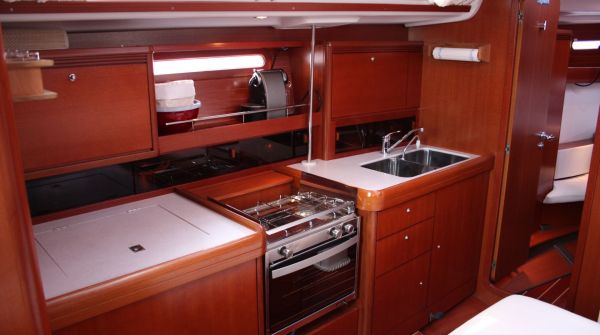

  • Longitudinal galley to port with worktop in CORIAN
  • Gas stove (2 burners and oven)
  • Double sink
  • Manual foot pump
  • Large electric coolbox

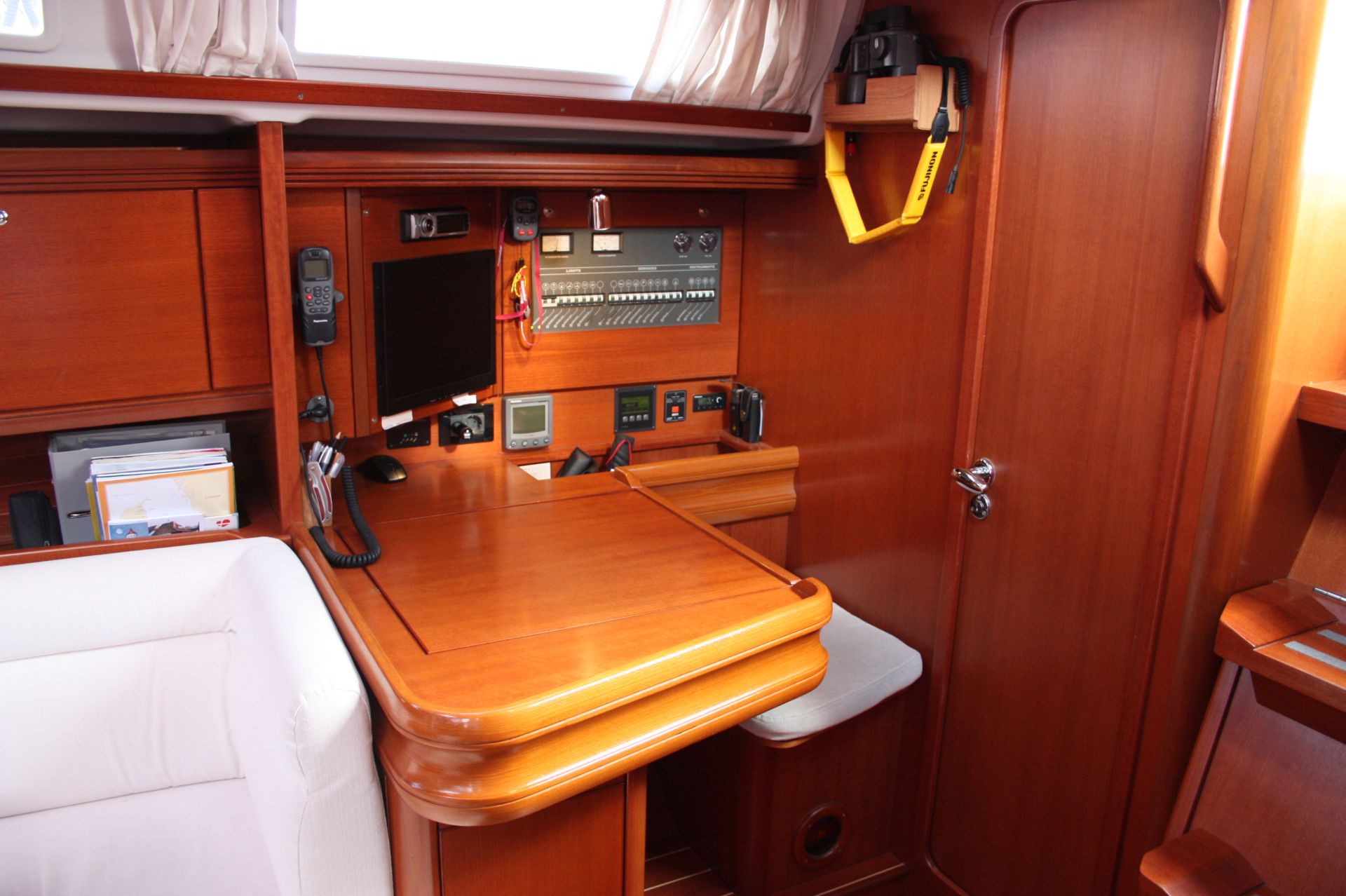

  • Forward facing charttable to starboard aft
  • Aft heads compartment to port

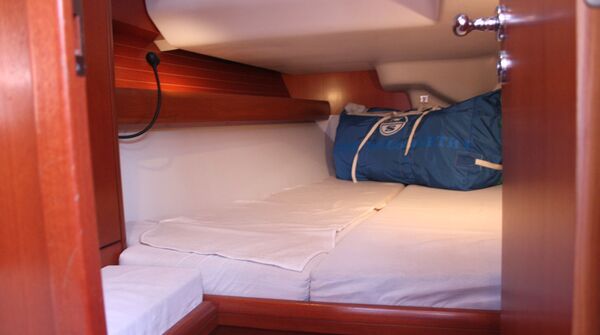

  • Two symmetrical guest cabin aft with double berth, locker and deck hatch
  • OCEANAIR blinds and mosquito screens for hatches
  • Leecloth for berths in aft cabins

Technical Equipment

  • VOLVO PENTA D2-40 4 cylinder inboard diesel 40 hp/29 kw
  • Saildrive and 3 bladed folding propeller Flex-o-Fold
  • 230 V shore power connection with battery charger 12 V/60 A
  • 4 x 12 V/230 V sockets in interior
  • Inverter WAECO 12 V/230 V
  • Battery monitor PHILIPPI
  • 5 AGM service batteries 12 V/100 Ah
  • AGM starter battery 12 V/70 Ah
  • Diesel heating WEBASTO
  • Stainless steel holding tank with electric pump

Navigation/ Electronics

  • Instruments above companionway: RAYMARINE ST60+ log, ST60+ depth sounder, ST60+ wind, ST60+ close hauled
  • Multi-display ST60+ graphic at charttable
  • Autopilot RAYMARINE ST6002 with remote control RAYMARINE S100
  • GPS/chartplotter RAYMARINE E80 in stainless steel console at steering pedestal
  • Marine PC Tiny Byte with screen and keyboard at charttable
  • Compass
  • VHF RAYMARINE Ray240E with mast antenna
  • Radio/CD-player JVC with four speakers MBQuart in saloon and two cockpit loudspeakers
  • Ship clock
  • Barometer

Safety

  • Jonbuoy rescue module at pushpit
  • Fire extinguisher
  • Manual and electric bilge pump

Accessories

  • Steering wheel cover
  • Fenders
  • Mooring lines
  • Second stainless steel Bruce-anchor
