Jeanneau 54

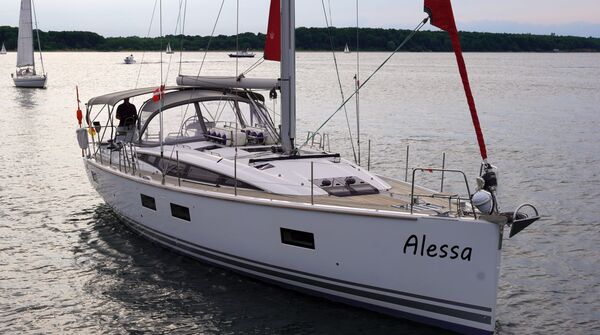

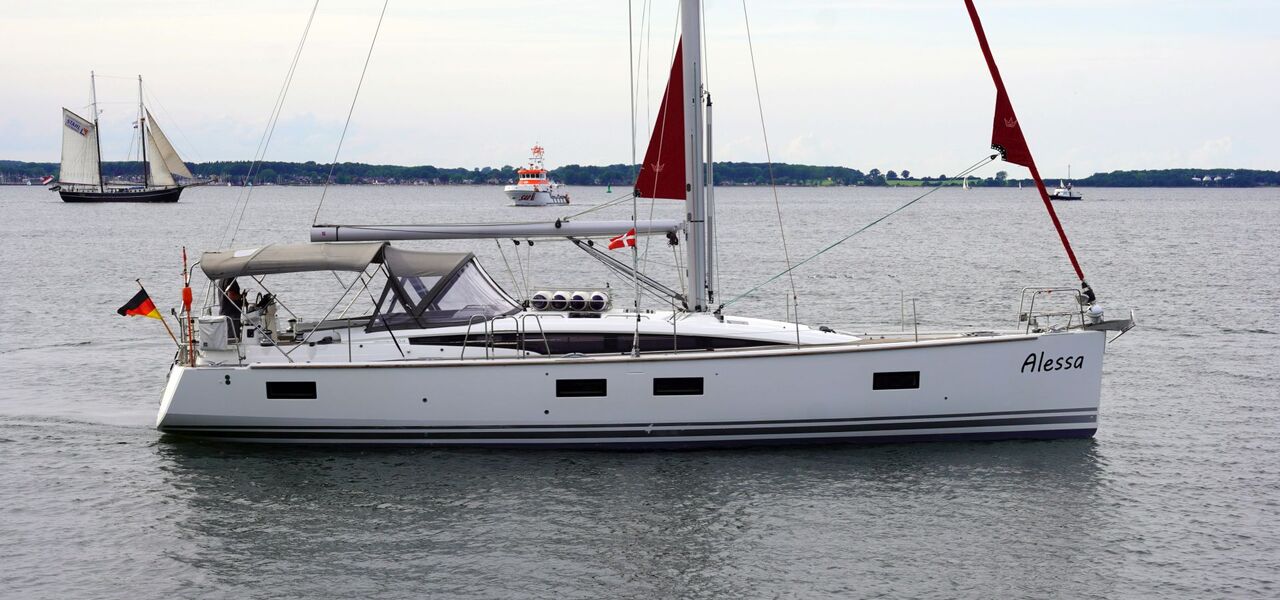

Cruiser built in 2016A striking appearance from the outside with a flat superstructure, the characteristic lateral coachhouse windows and the large panoramic windows in the front, the Jeanneau 54 offers plenty of space and comfort in her spacious interior with three cabins, each with a separate heads compartment, and her light-flooded saloon. The modern interior in light oak by British star designer Andrew Winch creates a pleasant, airy atmosphere. There is also plenty of living space on deck, and the two sun loungers in the cockpit, two more on the fold-down swim platform and a sun mattress set into the foredeck invite you to sunbathe at anchor. Completely undisturbed by passengers, the skipper can maneuver the Jeanneau 54 practically single-handed: All halyards, sheets and controls are led back to the two sets of winches in front of the helm station and the controls for engine, thrusters, furling systems, windlass, etc. are also centrally located here.

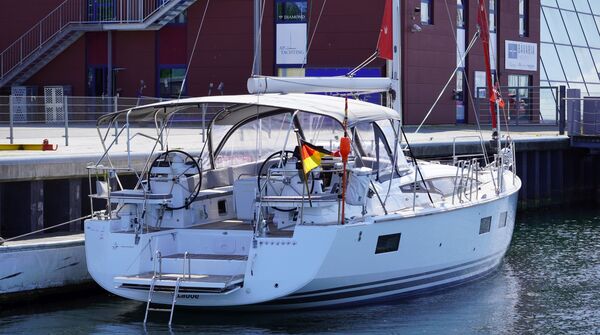

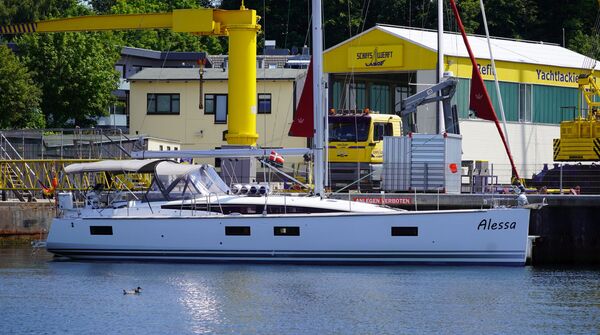

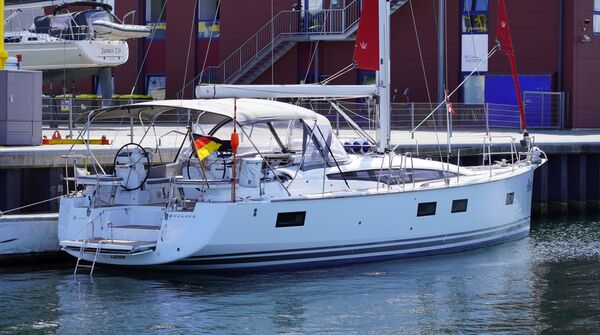

This Jeanneau 54 is an extensively equipped private yacht (no charter vessel) offered by her first owner. After delivery, the yacht has been optimised for comfortable, short handed cruising by adding numerous installations and replacing several standard components. For example, the complete energy management system was replaced by a large Whisper Power DC diesel generator, chargers, inverter and a lithium service battery bank all by Whisper Power. An electric headsail furling system, a retractable stern thruster, a satellite TV-antenna and several RAYMARINE navigation components were added. Shallow draft keel version with a draft of approx. 1,80 m. The Jeanneau 54 is moored in the Baltic Bay Marina in Laboe on the Kiel Fjord and can be viewed by appointment.
Jeanneau 54 | Cruiser built in 2016
Key Facts
- Comprehensive technical specification.
- Shallow draft version (draft: 1,80 m).
- Jeanneau 54 with furling mast.
- 3 cabin owner's version.
- Bow thruster and stern thruster.
- Lithium service batteries.
- Interior in light oak.
- Diesel generator.
Main Info
| Model | Jeanneau 54 |
|---|---|
| Manufacturer | Chantiers Jeanneau SA (FRA) |
| Designer | Philippe Briand |
| Category | Cruiser |
| Year | 2016 |
| Location | Baltic Bay-Marina/Laboe |
| Flag | Germany |
|---|---|
| VAT status | EU-VAT paid |
| Material | GRP |
| Rig | Sloop with furling mast |
| Cabins | 3 |
| Berths | 6 |
Dimensions & Technical details
| Length | 16.16 m |
|---|---|
| Length waterline | 14.25 m |
| Beam | 4.92 m |
| Draft | 1.80 m |
| Displacement | 18 t |
| Sail area | 111 m² |
| Engine | YANMAR 4JH4-TE |
|---|---|
| Power | 75 PS/55 KW |
| Drive | Shaft drive |
| Fresh water | 724 L |
| Fuel | 240 L |
| Holding tank | 210 L |
Jeanneau 54 | Interior pictures
Specification
Rig/Sails
- Deck-stepped, 9/10 fractional furling Z-Spars mast
- Two sets of aft-swept spreaders
- Electric headsail furling system FURLEX 400e
- Spinnaker pole as dinghy crane on mast
- Genoa tracks on deck
- HARKEN track with traveller for self-tacking jib forward of mast
- Furling mainsail ELVSTRÖM Hydranet triradial approx. 48 m² (new 2021) with continuous vertical battens
- Self-tacking jib ELVSTRÖM Hydranet triradial approx. 49 m² (new 2022) with vertical battens and UV-protection
- Standard 105 % Genoa Dacron approx. 63 m² (never used)

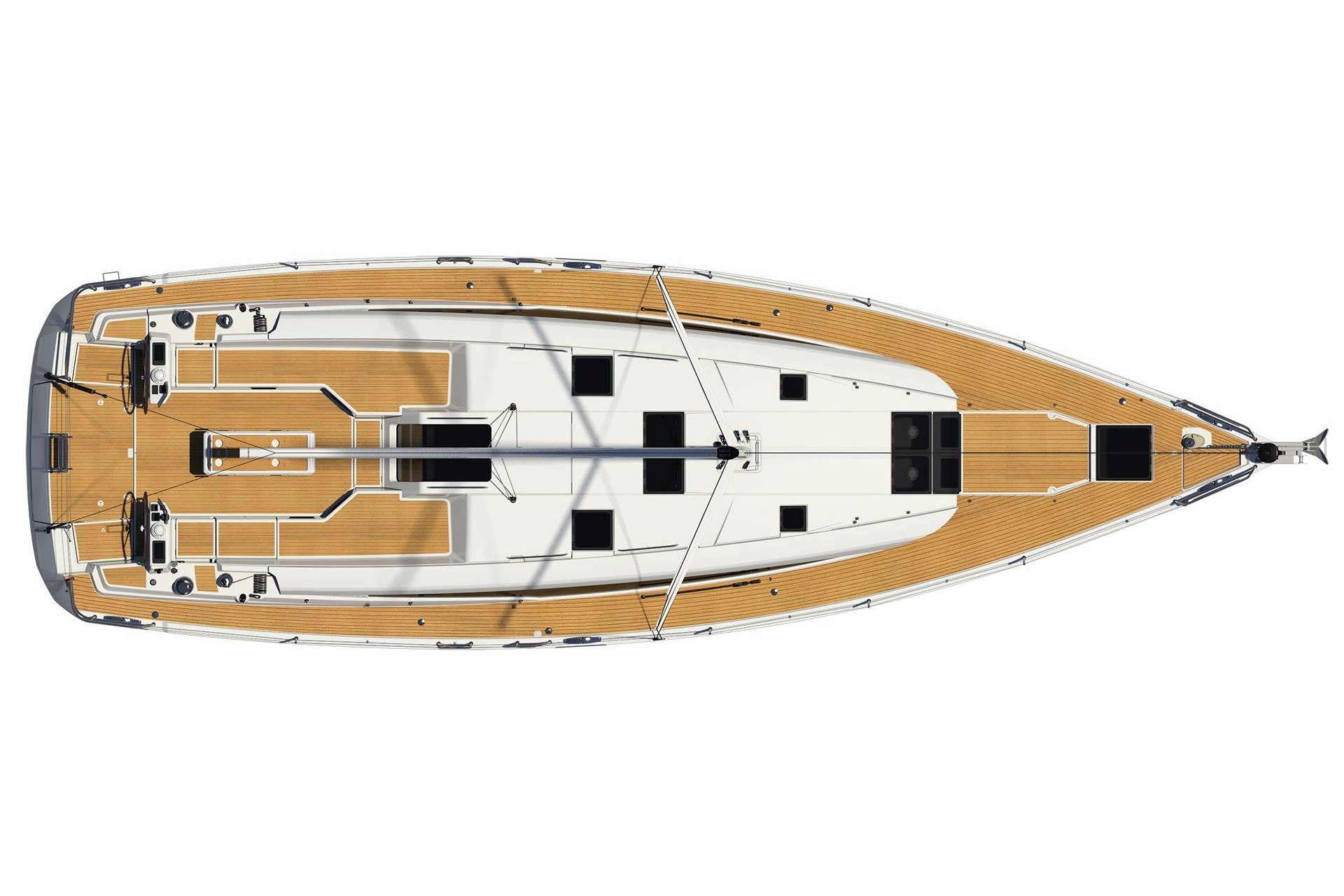

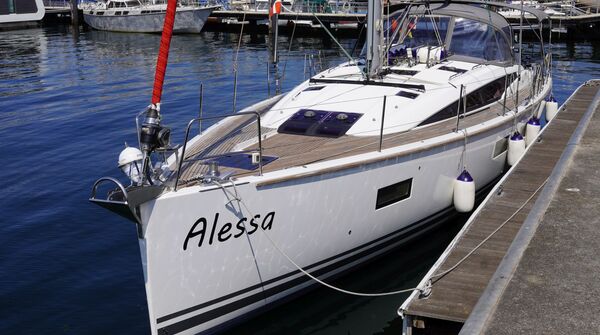

Deck
- Teak deck on running decks, swim platform and in cockpit
- Electric anchor windlass LEWMAR 1.500 W with remote control and chain counter in cockpit
- Mooring gear: Stainless steel strap-anchor 30 kg and 100 m anchor chain 10 mm
- Large, self-draining anchor locker
- Two steering positions with large consoles for instruments and folding helm seats
- Electric genoa winches HARKEN 70.2CEST
- Electric rewind winches HARKEN 46.2RWC as secondary winches
- Spacious sail locker below foredeck
- Sprayhood
- Bimini
- Railing gates with integrated folding boarding ladder to starboard and port

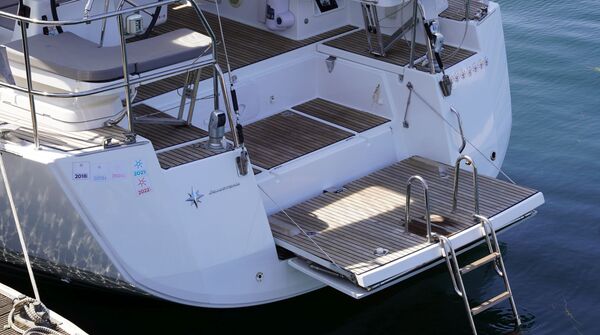

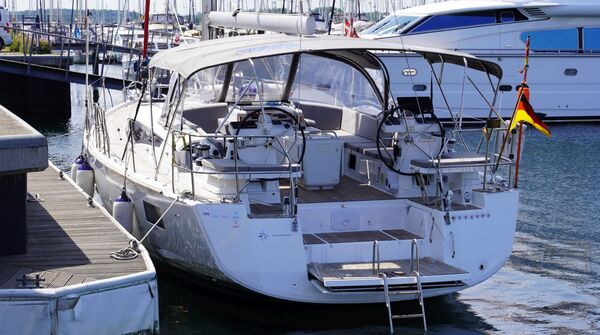

- Large electro-hydraulic folding swim platform
- Retractable dinghy davits aft
- Large NOMEN folding cleats fore and aft and amidships
- Additional spring cleats amidships
- Teak rubbing strake on hull sides
- Fender rack on coachhouse roof
- Comfortable folding swim ladder
- Large, folding GRP cockpit table with storage compartment and electric coolbox
- Courtesy lighting in cockpit

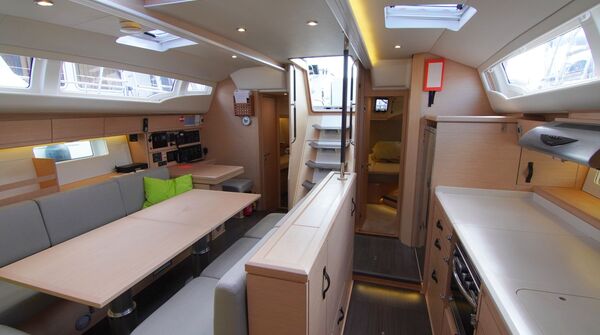

Layout/Interior

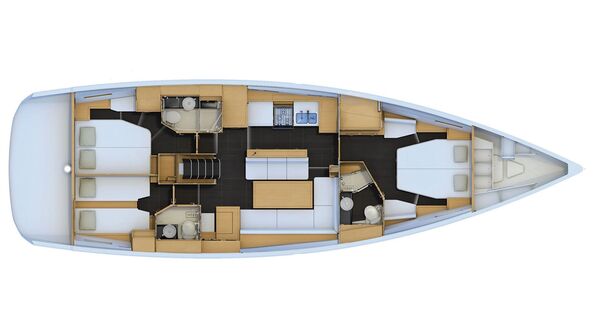

- Jeanneau 54 in 3 cabin layout with 3 heads and owner's cabin forward
- Light-coloured ALPI oak interior with dark oak floorboards ("Contemporary Style" interior, design: Andrew Winch)

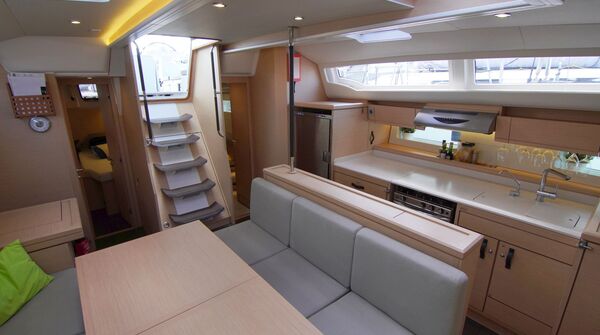

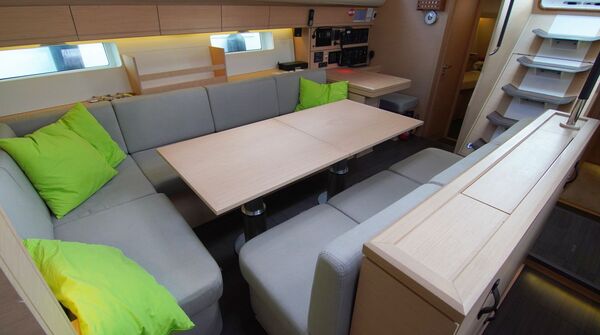

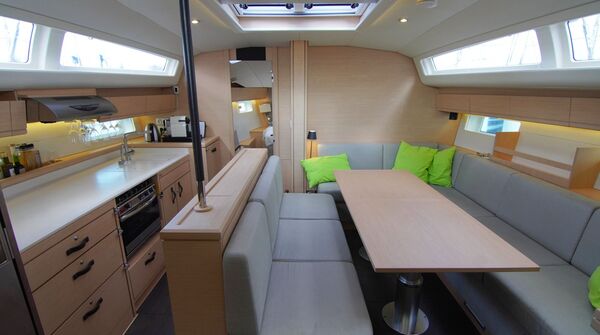

- Spacious, comfortable saloon with seating area and central bench seat at folding and electric lifting saloon table to starboard

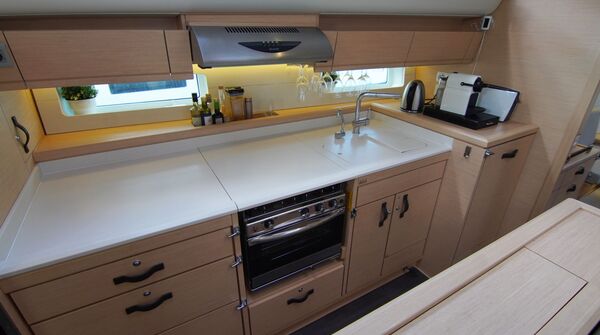

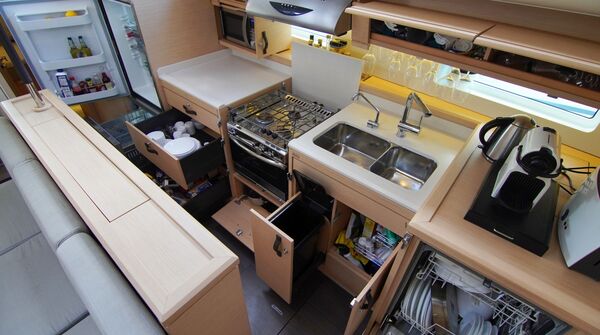

- Longitudinal galley to port
- Worktop in white Corian
- Gas stove (3 burners and oven)
- Electric remote switch for gas valve
- Extractor hood
- Microwave 230 V
- Dishwasher
- Double sink
- Large refrigerator

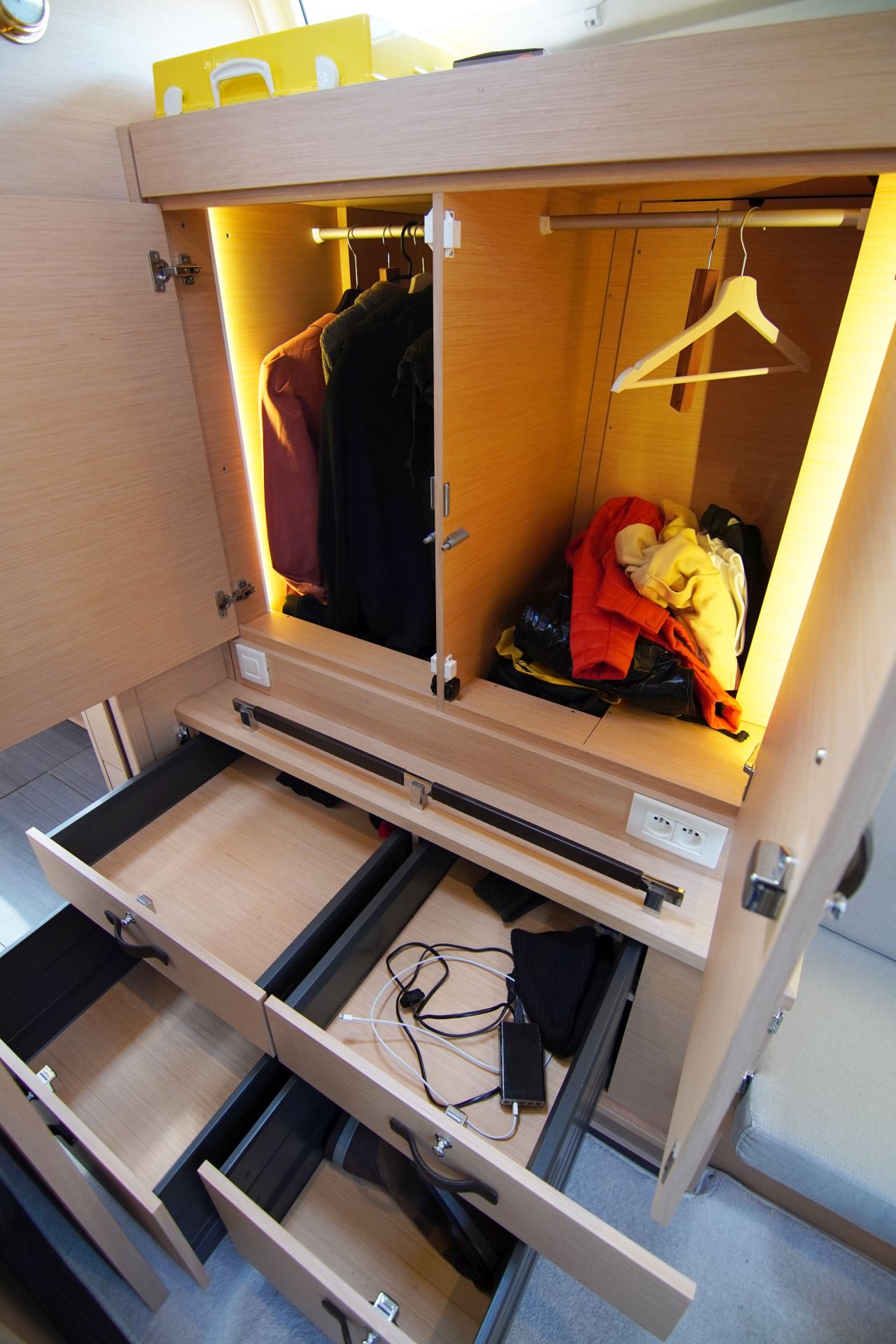

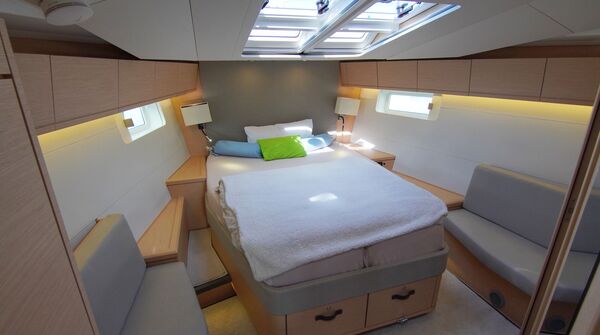

- Freezer compartment - Luxurious, bright forward owner's cabin with island double berth, settee, three deck hatches, two skylights, two hull windows and ample storage in locker, drawers and storage compartments
- En-suite owner's heads with electric toilet and separate shower
- VIP-aftcabin to port with double berth, locker, storage compartments, hull window, and two hatches to cockpit
- Port guest heads compartment with electric toilet and separate shower
- Starboard aft cabin with two single berths, locker, storage compartments, hull window, and two hatches to cockpit
- Starboard heads compartment with electric toilet and second access from saloon
- LED overhead lighting and ambient lighting by LED strips
- Vanities in all three heads compartments in black Corian
- Blinds and mosquito screens in deck hatches

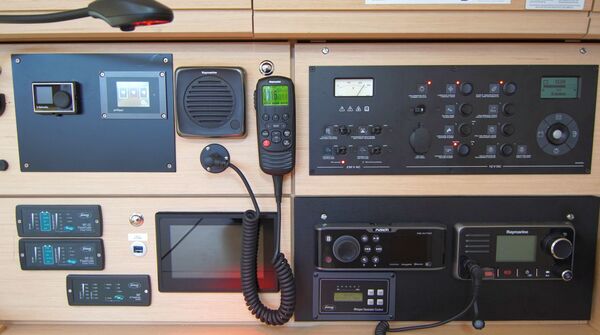

Technical Equipment
- YANMAR 4JH4-TE 4 cylinder turbo diesel 75 hp/55 KW
- Engine hours (as of May 2023): 285 h
- Shaft drive with 3 blade propeller
- Additional diesel tank 240 l (total capacity: 480 l)
- Tunnel bow thruster QUICK
- Retractable stern thruster SIDEPOWER
- Combined operation for bow and stern thruster at both helm stations
- 230 V shore power connection with charging cable
- 230 V and 12 V/USB sockets in interior
- 2 x battery charger Whisper Power DC PowerCube 24 V/150 A
- Inverter Whisper Power AC PowerCube 24 V/230 V/7.000 W
- Four lithium service batteries Whisper Power ION PP 12 V/210 Ah
- Starter battery 12 V/110 Ah
- 3 cylinder DC diesel generator Whisper Power M-GV3 8,6 KW
- 2 x diesel heating WEBASTO Air Top Evo 55
- Hot water boiler 40 l
- Fresh water shore connection
- Three electric toilets
- 3 x holding tank approx. 70 l with deck connection and sea discharge
- LED navigation lights
Safety
- Life raft
- EPIRB
- Fire extinguisher
- Smoke detector
- Manual and electric bilge pumps
- Lifesling
- Jackstays on deck
Accessories
- Cockpit cushions
- Sun bathing mattress on foredeck
- Sunbed cushions for swim platform
- Cushions on helm seats in cockpit
- Fenders
- Mooring lines
