Grand Soleil 45
Performance-Cruiser built in 2004The Grand Soleil 45 is a fast and elegant performance-cruiser built by Cantiere del Pardo in Italy with a low freeboard, flat construction profile and spacious deck. With the designs developed by the german designer judel / vrolijk & co., the Italian shipyard began to build a solid and stiff construction with strongback in galvanized steel to take loads of keel, rig, and maststep. Because of that building, the Grand Solei 45 J & V is a very stiff, twisted free yacht. Mahogany interior and 3 cabin layout (owner's cabin in the foredeck) with two heads.
This Grand Soleil 45 J & V is a well kept first hand owner's yacht. She is constantly and technically maintained. White hull with blue decor and teak deck everywhere. Comprehensive equipment with four electric winches, NORTH-Sails 3DL cloakroom, complete RAYMARINE navigation, folding bathing platform, dinghy with outboard engine, etc.
Key Facts
- Excellent sailing properties.
- Well-kept owner ship first-hand.
- Teak deck everywhere.
- Mahogany interior.
- 2 x electric windlass.
- Spacious cockpit.
Main Info
| Model | Grand Soleil 45 |
|---|---|
| Manufacturer | Cantiere del Pardo (ITA) |
| Designer | judel/vrolijk & co. |
| Category | Performance-Cruiser |
| Year | 2004 |
| Location | Niederlande |
| Flag | Netherlands |
|---|---|
| VAT status | EU-VAT paid |
| Material | GRP |
| Rig | Sloop |
| Cabins | 3 |
| Berths | 6 |
Dimensions & Technical details
| Length | 13.91 m |
|---|---|
| Length waterline | 12.00 m |
| Beam | 4.26 m |
| Draft | 2.30 m |
| Displacement | 9.6 t |
| Sail area | 119 m² |
| Engine | YANMAR 4JH4E |
|---|---|
| Power | 56 PS/41 KW |
| Drive | Saildrive mit Faltpropeller |
| Fresh water | 400 L |
| Fuel | 230 L |
| Holding tank | 45 L |
Grand Soleil 45 | Performance-Cruiser built in 2004
Specification
Rigging/Sails
- 7-speed SPARCRAFT performance aluminum mast
- Three pairs of aft sweaped spreaders
- Rod-rig
- Hydraulic backstay HOLMATRO (two cylinders with central hydraulic panel in the cockpit)
- HARKEN MK3 genoa-furling system
- carbon fiber spinnaker boom
- LED 3 colored lantern and anchor light in the top
- Fullbatten mainsail NORTH-Sails 3DL Twaron/Carbon (new 2011)
- HARKEN slides/track system for the mainsail
- Lazy jacks
- Genoa III NORTH-Sails 3DL 680 X (new 2011) with UV protection
- NORTH-Sails Code-0
- NORTH-Sails Gennaker 1.5 oz
- Gennaker gear
Deck
- Teak on side deck, roof, bathing platform and cockpit
- HARKEN deck fittings, German bulkhead system, genoatracks with ball-bearing genoa cars adjustable from cockpit
- 2 electric genoa winches HARKEN 53.2STEC
- 2 electric halyard winches HARKEN 48.2STEC
- 2 mainsail winches HARKEN 46.2STC
- Railings on port and starboard
- Bimini with stainless steel frame
- Electric windlass Stainless steel DELTA anchor with 80 m anchor chain 10 mm
- Stainless steel bow protection
- Foldable bathing platform with steps, teak deck and stainless steel bathing ladder
- Outboard engine bracket at pushpit
- Spring cleats
- Stainless steel rubbing strake protection at mooring cleats
- Cockpit shower hot / cold
- Sprayhood
- Cockpit cover
- Removable cockpit table

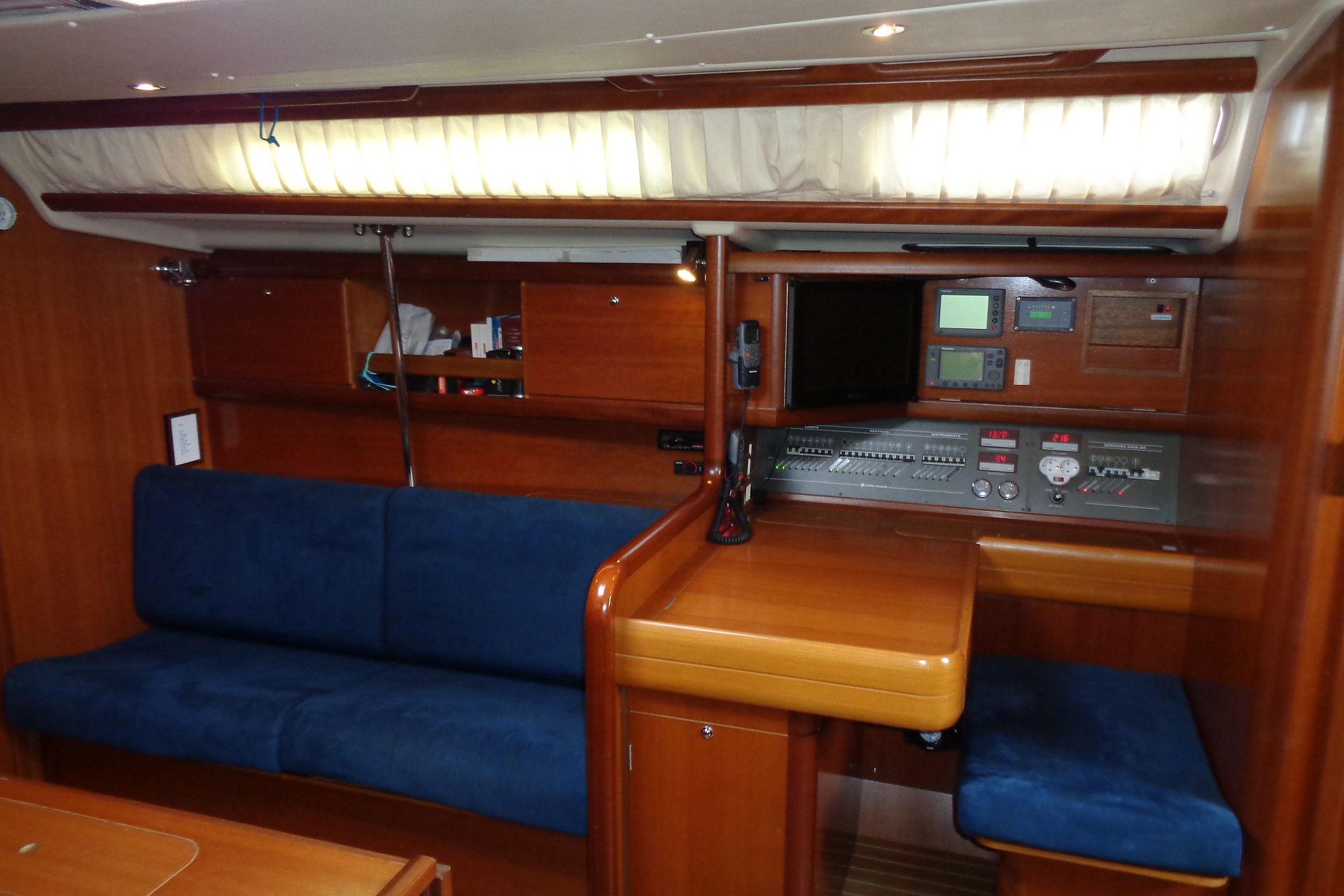

Layout/Interior
- Extension in mahagony
- ALCANTARA upholstery dark blue, white curtains
- 3 cabin layout with spacious owner's cabin with double berth in the foredeck
- Owner's heads with separate shower
- Second heads on port aft
- L-shaped pantry on port
- Gas stove (2 burners and oven)
- Double sink
- Refrigerator
- Foreward facing chart table on starboard
- Blinds and fly screen for deck hatches
- LED lights in the saloon
Technical Equipment
- YANMAR 4JH4E 4 cylinder built-in diesel (56 HP / 41 KW)
- Engine hours: 1200
- Stainless steel diesel tank approx. 230 l
- Saildrive with 3 bladed folding propeller
- 5 x Service battery 12 V / 110 Ah
- Starter battery 12 V / 74 Ah
- Battery monitor MASTERVOLT BTM I
- 12 V / 230 V sockets
- 230 V shore connection with charging cable
- Battery charger MASTERVOLT 12 V / 70 A
- Diesel heating WEBASTO
- LED navigation light
- Holding tank approx. 45 l with y-valve and deck connection
Safety
- Rescue Island AVON 6 pers.
- Electric and manual bilge pump
- 2 x fire extinguisher
Accessoires
- Dinghy Bombard 2,40 m TORQEEDO Travel L801 29,6 V / 24 W outboard engine
- FORTRESS Anchor 40 m with mooring line
- Full cover
- Boom cover
- Cover for steering wheels
- Fender
- Mooring lines
