AMEL 54
Bluewater cruiser built in 2009Luxurious and seaworthy bluewater cruiser from France fully equipped for circumnavigation. A proven concept, the high standard of boatbuilding in the yard and the focus on safety, reliability and comfort make AMEL sailing yachts legendary boats for long distance sailing and you meet them in the most remote areas of the world. Solid and stiff construction with bulkheads laminated to hull and deck (partially watertight bulkheads) and laminated hull/deck joint. Well protected, deep center cockpit with fixed windscreen and sprayhood. Spacious owner's cabin aft over the entire beam of the ship and big engine room for easy maintenance access.
This AMEL 54 (hull-no. #122) is a very well-kept, firsthand owner's yacht. Very comprehensive specification incl. electric furling mast, diesel generator ONAN 11 KW, airconditioning, diesel heater, watermaker, double anchor windlass, bowthruster, extensive sail wardrobe etc.
Key Facts
- Luxurious, fully equipped bluewater-cruiser
- El. in mast furling and el. headsail furlers
- 2 x anchor windlass with 2 x mooring gear
- Bowthruster and electric winches
- Diesel generator ONAN 11 KW
- Watermaker 100 l/h
Main Info
| Model | AMEL 54 |
|---|---|
| Manufacturer | Chantiers AMEL S.A. (FRA) |
| Designer | AMEL Design Group |
| Category | Bluewater cruiser |
| Year | 2009 |
| Location | Südfrankreich |
| Flag | Germany |
|---|---|
| VAT status | EU-VAT paid |
| Material | GRP |
| Rig | Ketch with cutter stay |
| Cabins | 3 |
| Berths | 6 |
Dimensions & Technical details
| Length | 17.20 m |
|---|---|
| Length waterline | 13.75 m |
| Beam | 4.80 m |
| Draft | 2.10 m |
| Displacement | 17.5 t |
| Sail area | 140 m² |
| Engine | VOLVO PENTA D3-110 |
|---|---|
| Power | 81 KW/110 PS |
| Drive | AMEL angle drive |
| Fresh water | 900 L |
| Fuel | 900 L |
| Holding tank | 120 L |
AMEL 54 | Bluewater cruiser built in 2009
Specification
Rigging/Sails
- Ketch-rig
- Deck stepped, toprigged, white painted, electric AMEL furling main mast with two sets of aftswept spreaders
- Eelectric outhaul for mainsail
- Deck stepped, toprigged, white painted AMEL mizzen mast with manual furler and one set of aftswept spreaders
- Electric genoa furler RECKMANN (new 2014)
- Cutter stay with electric furler BAMAR
- Spinnaker pole (stowed on mast)
- LED 3-color light and anchor light in mast top
- Furling mainsail DEME-Sails Hydranet triradial approx. 40 m²
- Furling mizzen Deme-Sails Hydranet triradial approx. 22 m²
- Furling genoa DEME-Sails Hydranet triradial approx. 75 m²
- Cutter jib DEME-Sails Hydranet triradial approx. 28 m²
- Furling gennaker incl. furler and gennaker gear
- Mizzen staysail DEME-Sails nylon
Deck
- Solid stainless steel bow fitting with rollers for two anchors and additional roller for mooring line
- 2 x electric anchor windlass 2.000 W with double mooring gear
- Stainless steel anchor with 100 m stainless steel anchor chain
- DELTA-anchor with chain and rope
- 2 electric genoa winches LEWMAR 58.2EST
- Electric mainsheet winch LEWMAR 40.2EST
- Electric stainless steel davits
- Solid railing in stainless steel tube
- Two integrated teak seats in pushpit
- Outboard bracket on pushpit
- Electric seawater anchor wash pump in anchor locker
- Cockpit table
- Fixed windscreen
- Sprayhood (new 2015)
- Cockpit enclosure
- Bimini with side panels
- Stern shower hot/cold
- Folding swimplatform with swim ladder
- 4 spring cleats
- Stainless steel rubbing strake
Layout/Interior
- Saloon with U-shaped dinette to port around saloon table and two single settees to starboard

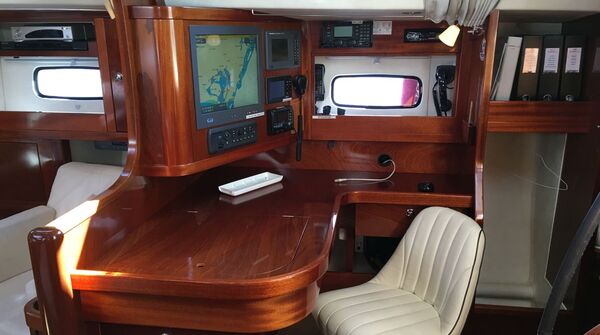

- Forward facing charttable to starboard aft
- U-shaped galley to port
- Corian worktop
- Double sink
- Gas stove (4 burners, oven and grill)
- Electric extraction hood
- Microwave 230 V
- Refrigerator
- Freezer
- 2. freezer in saloon
- Dishwasher

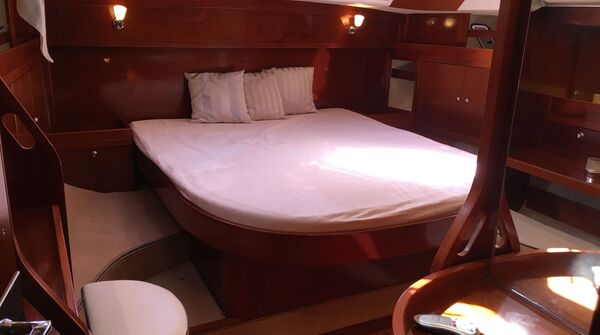

- Spacious owner's cabin aft with large, central double berth
- Owner's heads with separate shower
- Forward guest cabin with double berth to port
- Second guest cabin with Pullman beds to starboard
- Forward heads compartment in forepeak
- Blinds and mosquito screens for deck hatches and portholes
Technical Equipment
- VOLVO PENTA D3-110 5-cylinder turbo diesel 110 hp/81 kw with ZF hydraulic transmission
- AMEL drive
- 3-bladed BRUNTON Autoprop propeller
- SPURS rope cutter
- Double RACOR diesel filter
- Alternator 24 V/110 A
- AMEL retractable bow thruster 24 V/11 hp
- Diesel generator ONAN 11 KW
- 230 V shorepower connection with 230 V sockets below decks
- Battery charger 24 V/30 A
- Service battery bank 24 V/630 Ah (12 batteries 12 V/105 Ah)
- Starter battery 12 V/105 Ah
- Diesel heating 5 KW
- Air conditioning for saloon, aft cabin and forward cabins
- Watermaker DESSALATOR 100 l/h
- Washing machine 230 V
- tumbler dryer 230 V
- Electric toilets with fresh water flushing and holding tanks in both heads
Safety
- Liferaft in quick lauch bracket on pushpit
- Lifesling
- Horseshoe
- Signal horn
- Fire extinguishers
Accessories
- Cover for furling genoa and cutter jib
- Carbon gangway
- Dinghy with outboard engine
- Sun awning for aft deck
- Sunbathing cushions for aft deck
- Fenders
- Mooring lines
